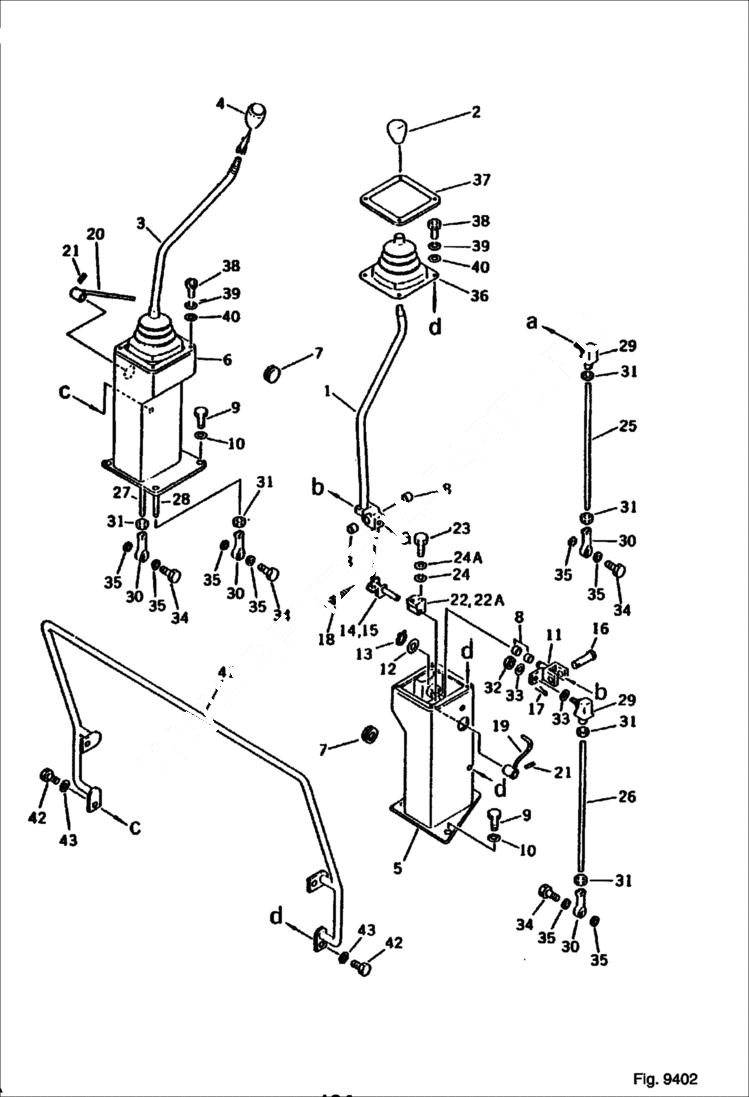

Запчасти Bobcat 100 WORK EQUIPMENT CONTROL LEVER SWING AND CONTROL SYSTEM

1

6639177

LEVER LH

2

6637900

KNOB

3

6639178

LEVER RH

4

6638643

SWITCH

5

6638735

STAND LH

6

6638736

STAND RH

7

CAP Was 08415-02512

8

6639170

BUSHING

9

6636980

BOLT

10

6637158

WASHER

11

6639280

YOKE

12

6637148

WASHER

13

6637217

SNAP RING

14

6638738

LEVER LH

15

6638739

LEVER RH

16

6637262

PIN

17

6637203

PIN, COTT

18

6637849

SPRING

19

6639284

LEVER LH

20

6638740

LEVER RH

21

6637188

PIN, ROLL

22

6638737

BLOCK LH

22

6638741

BLOCK RH

23

6636959

BOLT

24

6637134

WASHER

24

6637156

WASHER

25

6637285

ROD

26

6637288

ROD

27

6642817

ROD

28

6637288

ROD

29

6639406

CONNECTOR

30

6637307

END rod

31

6637113

NUT

32

6637113

NUT

33

6637157

WASHER

34

6636969

BOLT

35

6637157

WASHER

35

6637316

SHIM Komatsu S/N 6001-8512

36

6639189

BELLOWS

37

6639281

COVER

38

6639255

BOLT

39

6639256

WASHER

40

6639257

WASHER

41

6638700

HANDRAIL

42

6636966

BOLT

43

6637157

WASHER
