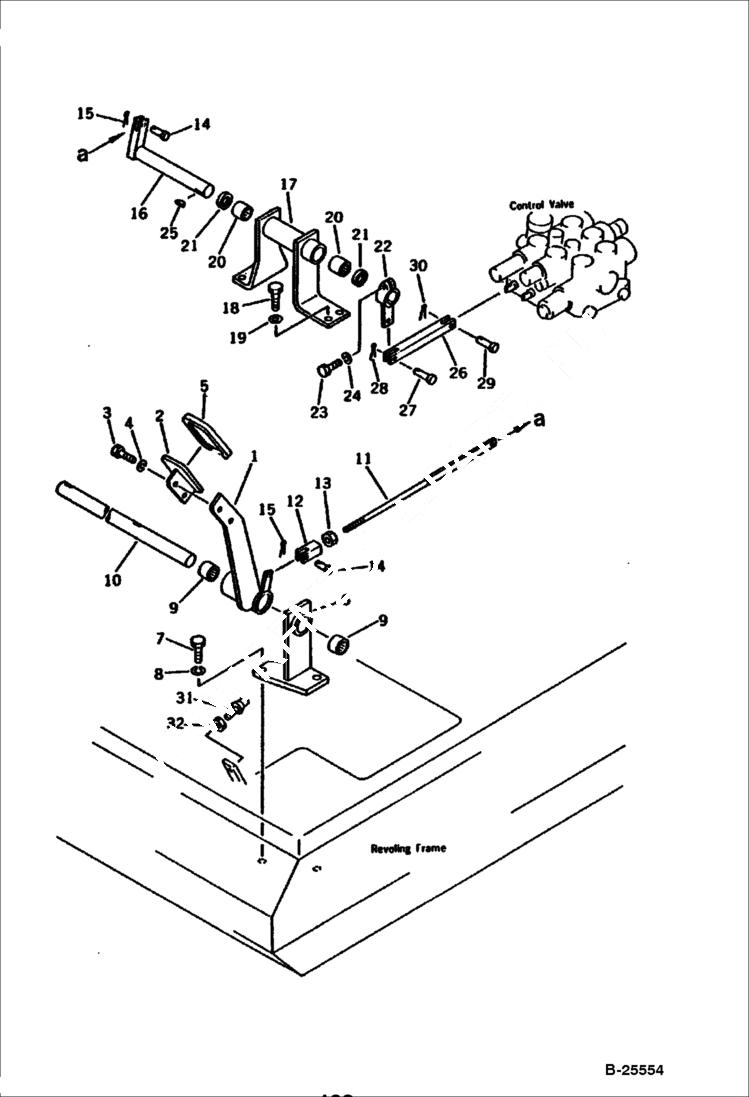

Запчасти Bobcat 100 TRAVEL SPEED PEDAL SWING AND CONTROL SYSTEM

1

6638729

LEVER

2

6641018

PEDAL

3

6636957

BOLT

4

6637134

WASHER

5

6637901

CAP

6

6638703

BRACKET

7

6636968

BOLT

8

6637135

WASHER

9

6637894

BEARING

10

6638704

SHAFT

11

6638732

ROD

12

6638922

YOKE

13

6637113

NUT

14

6637253

PIN

15

6637194

PIN, COTTER

16

6638733

LEVER

17

6638730

BRACKET

18

6636967

BOLT

19

6637135

WASHER

20

6637746

BUSHING

21

6637332

SEAL, BEARING

22

6638734

LEVER

23

6636960

BOLT

24

6637134

WASHER

25

6637173

KEY

26

6638731

YOKE

27

6637253

PIN

28

6637194

PIN, COTTER

29

6637248

PIN

30

6637193

PIN

31

6638923

BUMPER

32

6637109

NUT
