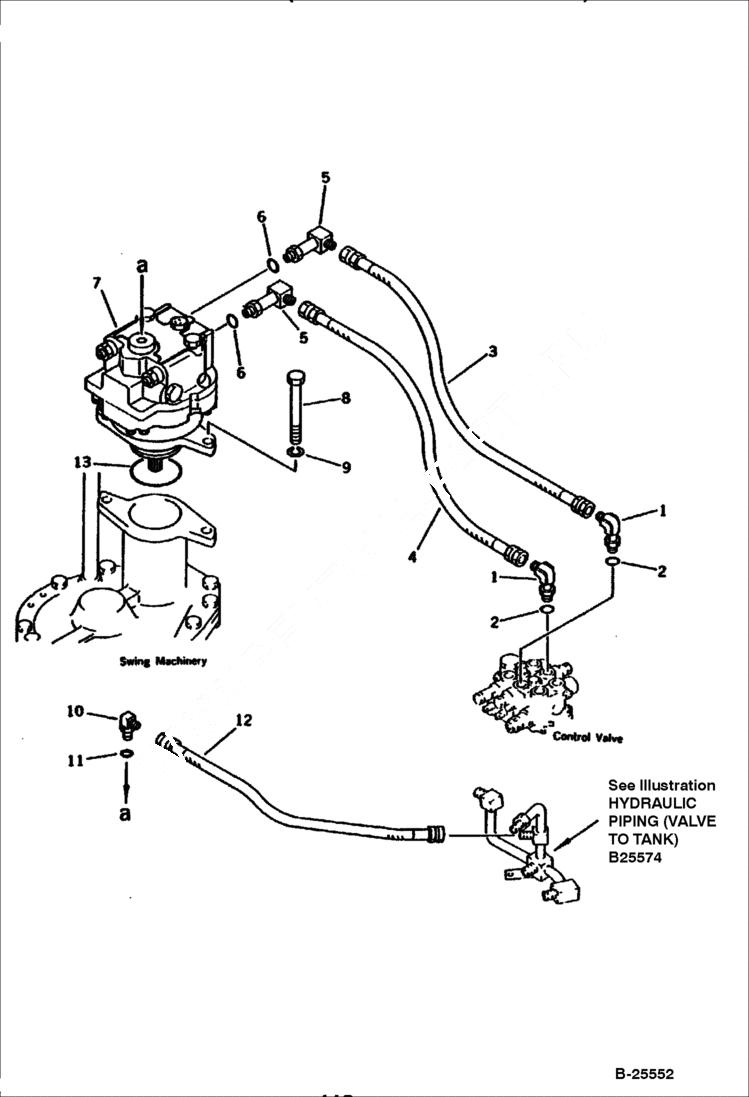

Запчасти Bobcat 100 HYDRAULIC PIPING (VALVE TO/FROM SWING MOTOR) SWING AND CONTROL SYSTEM

1

6638581

ELBOW

2

6637415

O-RING

3

6637507

HOSE

4

6637508

HOSE

5

6639398

ELBOW

6

6637418

O-RING

7

6640335

MOTOR ASSY swing

8

BOLT Was 01011-51445

9

6637137

WASHER

10

6638842

ELBOW

11

6637413

O-RING

12

6637499

HOSE

13

6637348

O-RING
